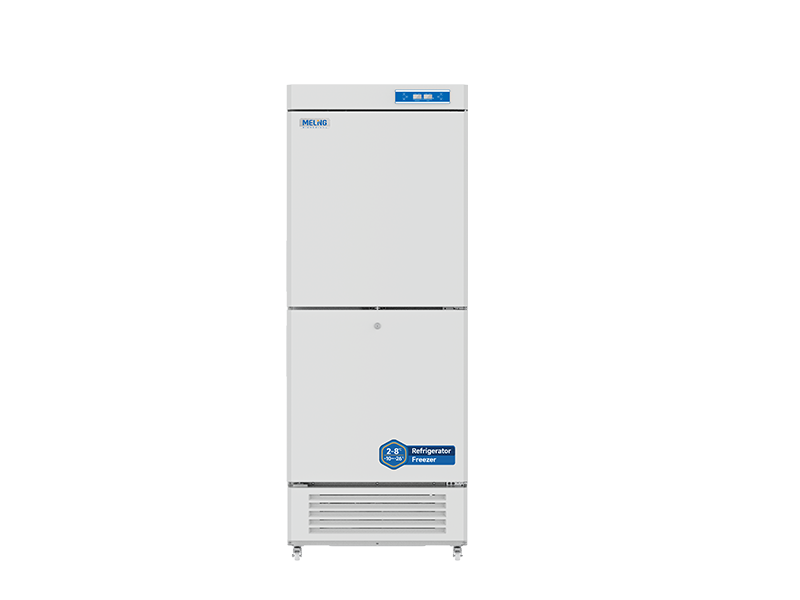

2~8°C / -10~-26°C Combined Refrigerator & Freezer YCD-EL300

Meling 2~8°C/-10~-26°C medical grade refrigerator freezer or vaccine storage refrigerator freezer YCD-EL300 comes with upper refrigeration and lower freezing separately control. This fridge freezer combo adopts 2 compressors and CFC-free refrigeration, ensuring high-efficiency and energy-saving. And it can ensure fast refrigeration and separate control of the upper refrigeration chamber and lower freezing chamber. We design the thermal insulation with a thicker insulation layer and CFC-free polyurethane foam technology for better insulation effect. The digital temperature display can indicate operating status clearly, and you can set the high temperature or low temperature alarm points regarding your needs.

Model

YCD-EL300

Cabinet type

Upright

Capacity

R: 197 L, F: 103 L

Internal size (W*D*H)

R: 600*510*657 mm, F:500*460*535 mm

External size (W*D*H)

700*640*1876 mm

Net weight

95 kg

Performance

Temperature range

R: 2~8°C, F: -10~-26°C

Ambient temperature

16~32°C

Climate class

N

Controller

Microprocessor

Display

Digital panel

Refrigeration

Compressor

2

Cooling method

R: Air cooling, F: Direct cooling

Defrost mode

R: Automatic, F: Manual

Refrigerant

R600a

Construction

External material

PCM

Inner material

Sprayed aluminum plate

Shelves

R: 3 (Coated steel wired), F: 3 (ABS)

Door lock with key

Yes

Door with heater

R: Yes

Door

1 (2 inner doors)

Access port

2 (Ø 25 mm)

Casters

4 (2 with lock)

Data logging

Built-in USB (Stores up to 1 year of data)

Backup battery

Yes

Alarm

Temperature

High/Low temperature, High ambient temperature

Electrical

Power failure, Low battery

System

Door ajar, Sensor failure, Built-in USB datalogger failure, Communication failure

Accessories

Standard

RS485, Remote alarm contact
